Privacy Room

Selection guide

Easier and faster management

From the experience gained with the Privacy Room for F80s, we propose a basic module of 300cm for the whole range of Privacy Room enclosures. All you need to do is purchase the basic module and the related additional front panels: a modular management that allows you to optimize storage space and grants more possibilities to satisfy the customer. The sizes below 300cm will remain unchanged. The Privacy will be produced with a new fabric that has better performing technical characteristics, while the door will have better finishing to increase its water resistance. New curtains and bag with new design complete the restyling.

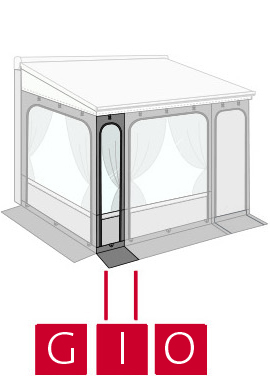

For Fiamma awnings F45s, F45L
Basic Module [S], [M], [L]


A	B	Composition
260 cm	Van [S] 180-220 cm	Basic module	[S]
300 cm		Basic module + panel 40	[S]+G
300 cm	Medium [M] 225-250 cm Large [L] 251-280	Basic module	[M] / [L]
325 cm		Basic module + panel 25	[M] / [L] + T

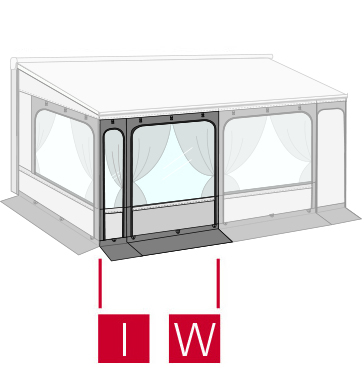

350 cm		Basic module + panel 50	[M] / [L] + I
375 cm		Basic module + panel 75	[M] / [L] + O
400 cm		Basic module + panel 100	[M] / [L] + P

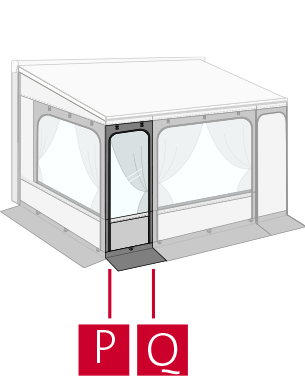

425 cm		Basic module + panel 125	[M] / [L] + Q

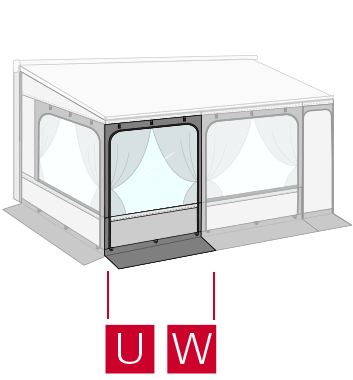

450 cm		Basic module + panel 150	[M] / [L] + U
500 cm		Basic module + panel 200	[M] / [L] + W
550 cm		Basic module + panel 200 + panel 50	[M] / [L] + W + I

For Fiamma awnings F80s, F65L
Basic module [S], [M], [L]


A	B	Composition
300 cm	Van [S] 245 cm Medium [M] 245-280 cm Large [L] 280	Basic module	[S] / [M] / [L]

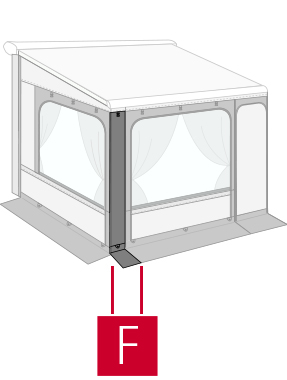

320 cm		Basic module + panel 20	[S] / [M] / [L] + F
340 cm		Basic module + panel 40	[S] / [M] / [L] + H

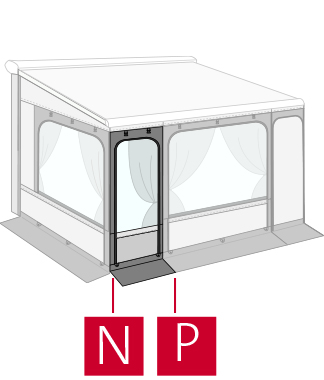

370 cm		Basic module + panel 70	[S] / [M] / [L] + N
400 cm		Basic module + panel 100	[S] / [M] / [L] + P

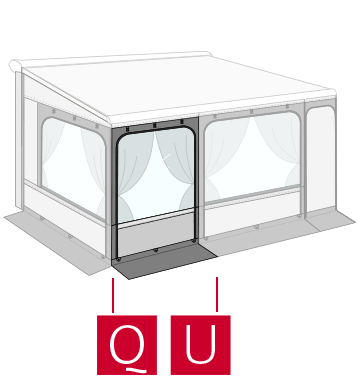

425 cm		Basic module + panel 125	[S] / [M] / [L] + Q
450 cm		Basic module + panel 150	[S] / [M] / [L] + U

For Fiamma awnings F80L
Basic module [XL] , [XXL]




A	B	Composition

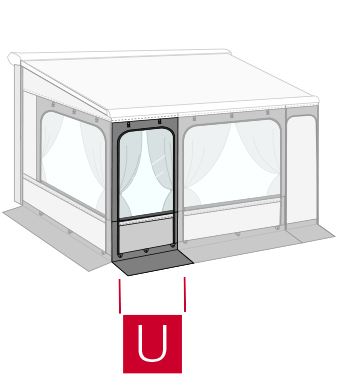

450 cm	[XL] 245 - 280 cm	Basic module + panel 150	[XL] +U

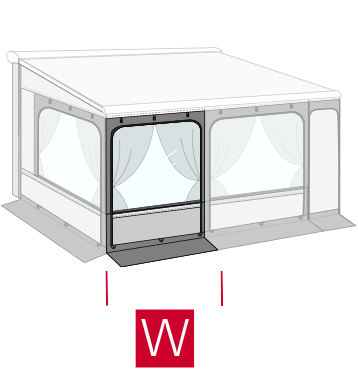

500 cm		Basic module + panel 200	[XL]+W

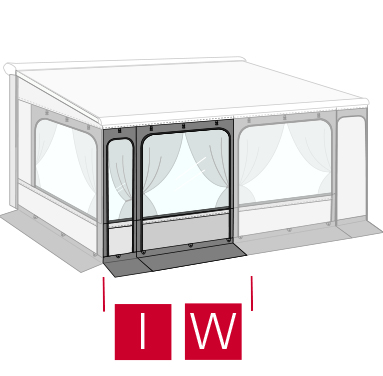

550 cm		Basic module + panel 200 + panel 50	[XL]+W+I

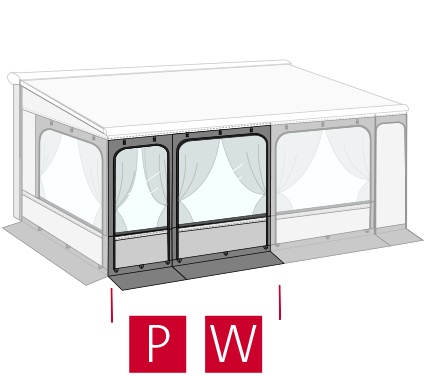

600 cm		Basic module + panel 200 + panel 100	[XL]+W+P
450 cm	[XXL] 281 - 310 cm	Basic module + panel 150	[XXL] +U
500 cm		Basic module + panel 200	[XXL]+W
550 cm		Basic module + panel 200 + panel 50	[XXL]+W+I
600 cm		Basic module + panel 200 + panel 100	[XXL]+W+P

Articles

Item	Description	Price
08366-01-	Privacy Room Van 260 * - F45 - [S]	€ 1,135.00
08367-01-	Front Panel Van 40 cm * - [G]	€ 69.00
08366A01-	Privacy Room 300 - Medium / H: 225-250 - F45 - [M]	€ 1,132.00
08366B01-	Privacy Room 300 - Large / H: 251-280 - F45 - [L]	€ 1,148.00
08760A01-	Privacy Room 300 H3 F80 - Magnets	€ 1,366.00
08760-01-	Privacy Room 300 Ducato**** > 06/06 - H: Van 245 - F80 / F65 - [S]	€ 1,187.00
08368B01-	Privacy Room 300 - Medium / H: 245-280 - F80 / F65 *** - [M]	€ 1,348.00
08370-01-	Privacy Room 300 - F80L XL / H: 245 - 280 - [XL]	€ 1,357.00
08370A01-	Privacy Room 300 - F80L XXL / H: 281 - 310 - [XXL]	€ 1,440.00
08364-01-	Front Panel 20 - F80/F65 - [F]	€ 46.40
08364A01-	Front Panel 40 - F80/F65 - [H]	€ 51.30
08364N01-	Front Panel 25 - F45 - [T]	€ 46.40
08364B01-	Front Panel 50 - F45 - [I]	€ 51.30
08364C01-	Front Panel 70 - F80/F65 - [N]	€ 66.10
08364D01-	Front Panel 75 - F45 - [O]	€ 66.10
08364E01-	Front Panel 100 - F45/F80/F65 - [P]	€ 102.00
08364F01-	Front Panel 125 - F45/F80/F65 - [Q]	€ 126.00
08364H01-	Front Panel 150 - F45/F80/F65 - [U]	€ 145.00
08364M01-	Front Panel 200 - F45 - [W]	€ 174.00

Mentioned prices are suggested retail prices, Vat, Installation, Duties and Transport cost excluded.

* For awnings F45s 300 VW T5/T6 long wheelbase use Front Panel 40 and Privacy Room 260 VWT5/T6.
** Designed for Mercedes Sprinter, VW Crafter and Ducato H3, Fast Clip Light aluminium poles delivered as standard. (Vertfical Rafter are not included)
*** This model is suitable for vehicles with straight wall, height from ground 245-280 cm.
**** Complete with magnet kit (2 sets of 6 magnets) which, inserted in the side panel pocket, permit complete adhesion to the Ducato vehicle.

Data sheet

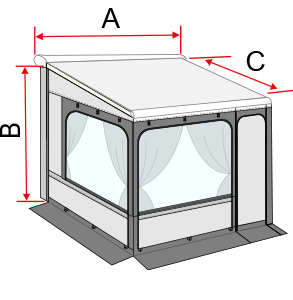

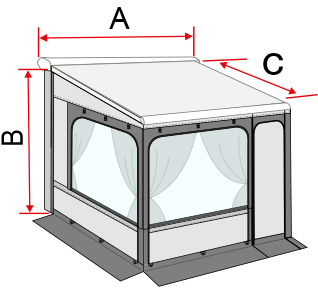

Description	Awning length A	Height from ground B	Extension C	Weight
Privacy Room Van 260 * - F45 - [S]	260 cm	180-220 cm	200 cm	23,7 kg
Front Panel Van 40 cm * - [G]	-	-	-	0,9 kg
Privacy Room 300 - Medium / H: 225-250 - F45 - [M]	300 cm	225-250 cm	250 cm	24,4 kg
Privacy Room 300 - Large / H: 251-280 - F45 - [L]	300 cm	251-280 cm	250 cm	24,7 kg
Privacy Room 300 H3 F80 - Magnets	300 cm	280 cm	250 cm	24 kg
Privacy Room 300 Ducato**** > 06/06 - H: Van 245 - F80 / F65 - [S]	300 cm	245 cm	250 cm	23,2 kg
Privacy Room 300 - Medium / H: 245-280 - F80 / F65 *** - [M]	300 cm	245-280 cm	250 cm	23,2 kg
Privacy Room 300 - F80L XL / H: 245 - 280 - [XL]	300 cm	245-280 cm	275 cm	24,2 kg
Privacy Room 300 - F80L XXL / H: 281 - 310 - [XXL]	300 cm	281-310 cm	275 cm	25,8 kg
Front Panel 20 - F80/F65 - [F]	-	-	-	0,3 kg
Front Panel 40 - F80/F65 - [H]	-	-	-	0,7 kg
Front Panel 25 - F45 - [T]	-	-	-	0,3 kg
Front Panel 50 - F45 - [I]	-	-	-	0,6 kg
Front Panel 70 - F80/F65 - [N]	-	-	-	1,0 kg
Front Panel 75 - F45 - [O]	-	-	-	1,4 kg
Front Panel 100 - F45/F80/F65 - [P]	-	-	-	0,9 kg
Front Panel 125 - F45/F80/F65 - [Q]	-	-	-	1,5 kg
Front Panel 150 - F45/F80/F65 - [U]	-	-	-	1,4 kg
Front Panel 200 - F45 - [W]	-	-	-	2,6 kg
